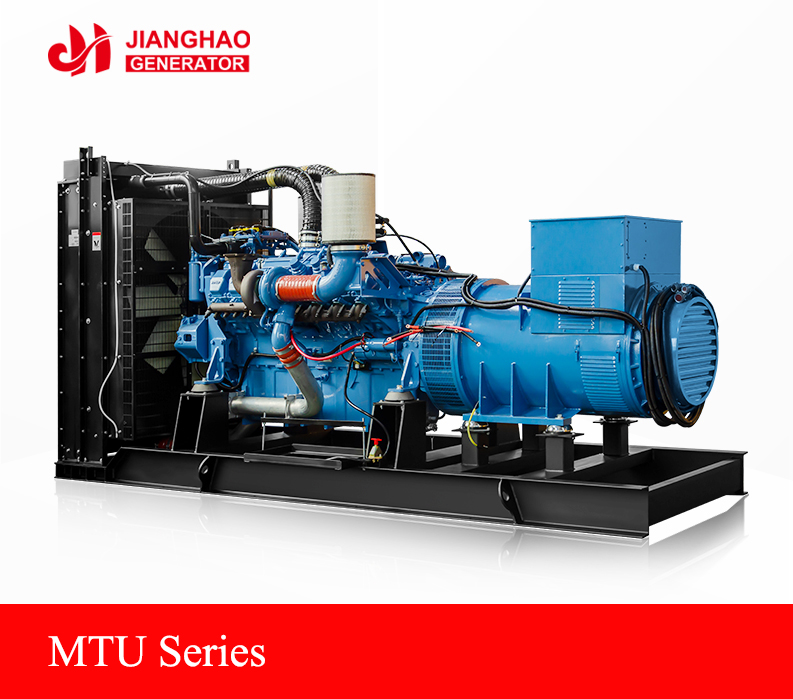

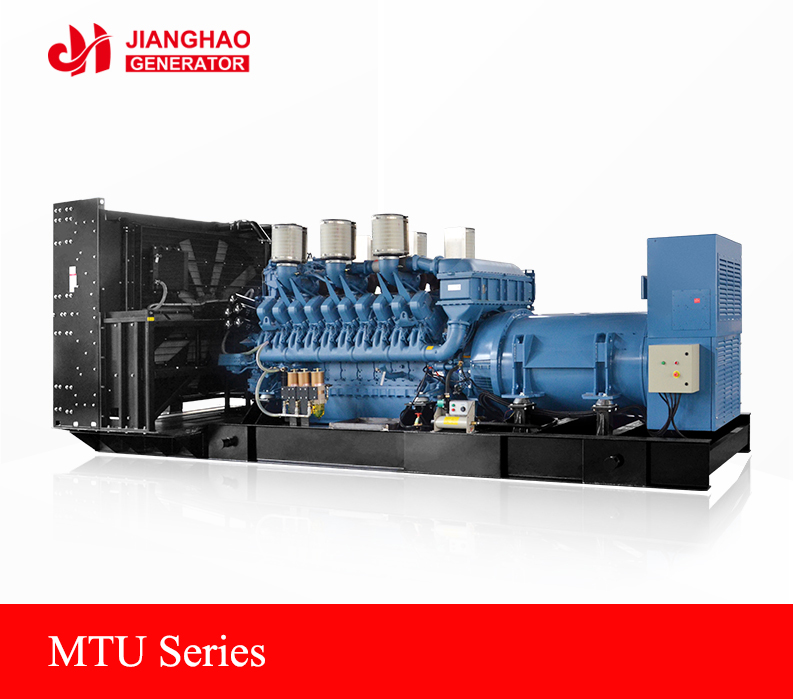

MTU series generators driven by Germany MTU industry engine which have leading level in the world,it use electronic injection technology and full digitalization ADEC digital control system,it meet Germany TALuft standard,energy conservation and environmental.MTU generator equip Marathon,Stamford etc high-end alternator,advanced performance and running stable.
| Type | Output Power |
Cuurrent (A) | Engine model | Cylinder |
Bore*Stroke (mm) |
FuelCon. (L) |
Dis. g/kw.h |
Dimension(mm ) L*W*H | Weight(kg) | |
| KW | KVA | |||||||||
| MTU 1600系列 | ||||||||||
| NHM-220GF | 220 | 275 | 396 | 6R1600G10F | 6 | 122*150 | 10.5L | 201 | 2800*1150*1650 | 2500 |
| NHM-250GF | 250 | 312.5 | 450 | 6R1600G20F | 6 | 122*150 | 10.5L | 199 | 2800*1150*1650 | 2900 |
| NHM-300GF | 300 | 375 | 540 | 8V1600G10F | 8 | 122*150 | 14L | 191 | 2840*1600*1975 | 3250 |
| NHM-320GF | 320 | 400 | 576 | 8V1600G20F | 8 | 122*150 | 14L | 190 | 2840*1600*1975 | 3250 |
| NHM-360GF | 360 | 450 | 648 | 10V1600G10F | 10 | 122*150 | 17.5L | 191 | 3200*1600*2000 | 3800 |
| NHM-400GF | 400 | 500 | 720 | 10V1600G20F | 10 | 122*150 | 17.5L | 190 | 3320*1600*2000 | 4000 |
| NHM-480GF | 480 | 600 | 864 | 12V1600G10F | 12 | 122*150 | 21L | 195 | 3300*1660*2000 | 3900 |
| NHM-500GF | 500 | 625 | 900 | 12V1600G20F | 12 | 122*150 | 21L | 195 | 3400*1660*2000 | 4410 |
| MTU 2000系列 | ||||||||||
| NHM-550GF | 550 | 687.5 | 990 | 12V2000G25 | 12 | 130*150 | 23.88L | 197 | 4000*1650*2280 | 6500 |
| NHM-630GF | 630 | 787.5 | 1134 | 12V2000G65 | 12 | 130*150 | 23.88L | 202 | 4200*1650*2280 | 7000 |
| NHM-800GF | 800 | 1000 | 1440 | 16V2000G25 | 16 | 130*150 | 31.84L | 198 | 4500*2000*2300 | 7800 |
| NHM-880GF | 880 | 1100 | 1584 | 16V2000G65 | 16 | 130*150 | 31.84L | 198 | 4500*2000*2300 | 7800 |
| NHM-1000GF | 1000 | 1250 | 1800 | 18V2000G65 | 18 | 130*150 | 35.82L | 202 | 4700*2000*2380 | 9000 |
| MTU 4000系列 | ||||||||||
| NHM-1100GF | 1100 | 1375 | 1980 | 12V4000G21R | 12 | 165*190 | 48.7L | 199 | 6100*2100*2400 | 11500 |
| NHM-1200GF | 1200 | 1500 | 2160 | 12V4000G23R | 12 | 170*210 | 57.2L | 195 | 6150*2150*2400 | 12000 |
| NHM-1400GF | 1400 | 1750 | 2520 | 12V4000G23 | 12 | 170*210 | 57.2L | 189 | 6150*2150*2400 | 13000 |
| NHM-1500GF | 1500 | 1875 | 2700 | 12V4000G63 | 12 | 170*210 | 57.2L | 193 | 6150*2150*2400 | 14000 |
| NHM-1760GF | 1760 | 2200 | 3168 | 16V4000G23 | 16 | 170*210 | 76.3L | 192 | 6500*2600*2500 | 17000 |
| NHM-1900GF | 1900 | 2375 | 3420 | 16V4000G63 | 16 | 170*210 | 76.3L | 191 | 6550*2600*2500 | 17500 |
| NHM-2200GF | 2200 | 2750 | 3960 | 20V4000G23 | 20 | 170*210 | 95.4L | 195 | 8300*2950*2550 | 24000 |
| NHM-2400GF | 2400 | 3000 | 4320 | 20V4000G63 | 20 | 170*210 | 95.4L | 193 | 8300*2950*2550 | 24500 |
| NHM-2500GF | 2400 | 3125 | 4500 | 20V4000G63L | 20 | 170*210 | 95.4L | 192 | 8300*2950*2550 | 25000 |
1.Above technical parameters speed is 500RPM, frequency 50HZ, rated voltage 400 / 230V, power factor 0.8, and 3-phase 4-wire. 60HZ diesel generators can be made according to the specific needs of customers.
2.Alternator is based on customer needs, you can choose from Wuxi Stamford, Shanghai Hengsheng(recommend), Shanghai marathon and other famous brands.
3 The parameter list above are for reference only, subject to change without notice.
